以太網I/O模塊:ADAM- 6000

聯絡我們

回上層

總覽
產品型錄
相關資源

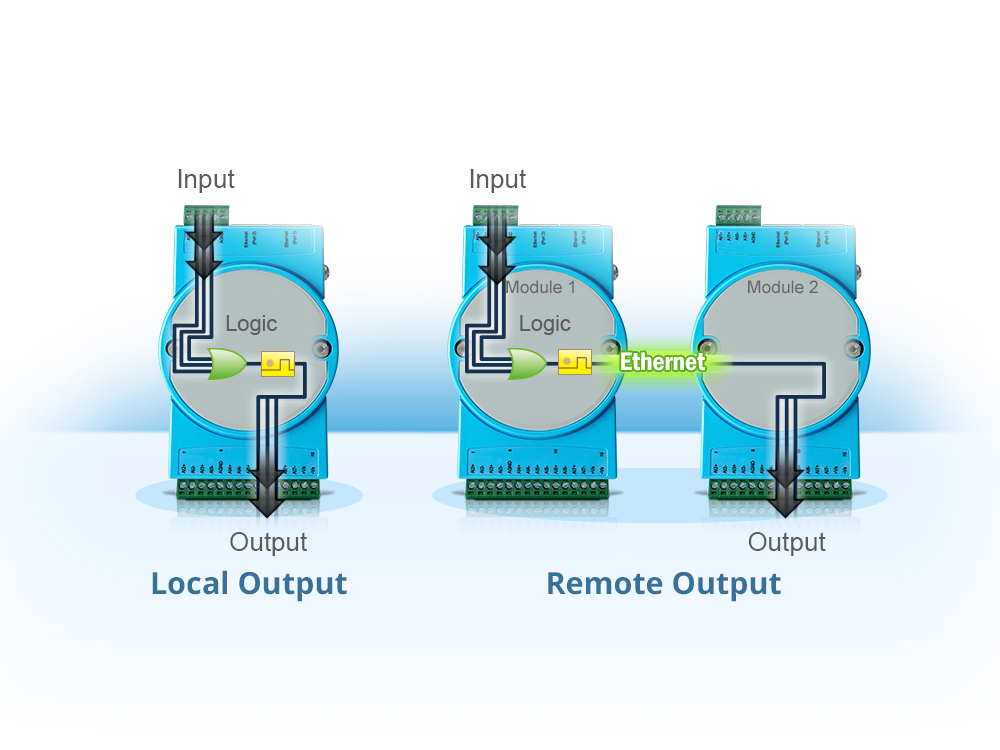

研華智能以太網I/O模塊ADAM-6000系列包括模擬和數字輸入/輸出模塊，通過創新互聯網技術實現系統集成，從而靈活遠程監控設備狀態。ADAM-6000模塊具點對點（P2P）和圖形條件邏輯（GCL）功能，可作為獨立測量、控制和自動化產品使用。通過直觀圖形化應用可快速完成配置無需額外控制器或編程工具。

Show More

研華的以太I/O模塊ADAM-6000/6200系列，通過最新的互聯網技術輕松完成集成，從而更靈活地遠程監控設備狀態。

產品亮點

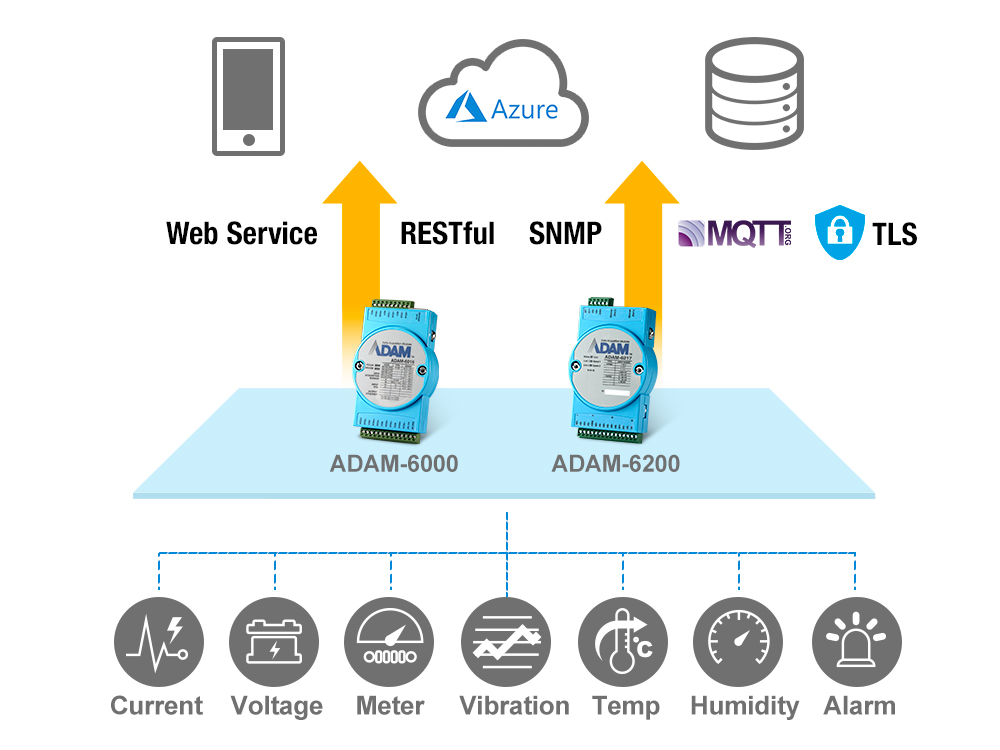

使用多種物聯網協議輕松通信:MQTT, SNMP, RESTful, TLS

云:

支持Azure IoT Hub
MQTT:

以用戶定義的間隔主動發布MQTT消息

縮短停機時間與報警事件通知

使用TLS(傳輸層安全)保證隱私

使用ADAM.Net Utility簡化MQTT的配置
SNMP:

在NMS(網絡管理系統)上監視I/O數據的簡單方法

支持SNMP v1/v2c協議

用于通知告警事件的SNMP trap

使用ADAM MIB(管理信息庫)文件降低實現成本

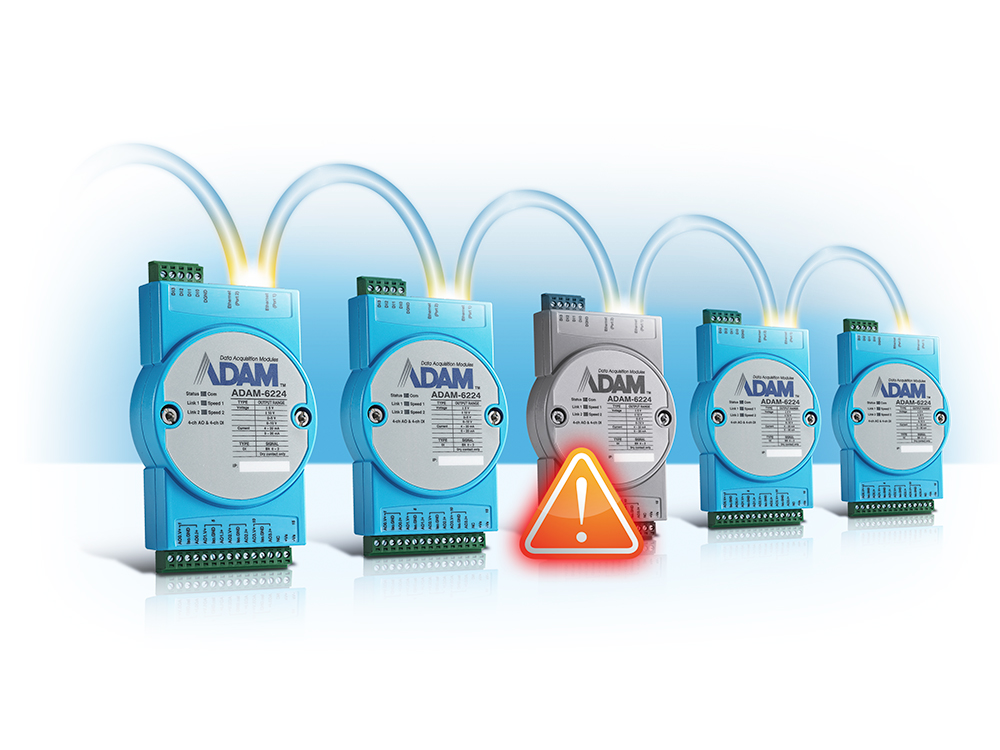

具有菊花鏈網絡和自動旁路保護功能，實現靈活部署

菊花鏈連接提供靈活的布線和節省空間的功能。支持以太網自動旁路功能，以防止其中一個模塊意外關閉時發生意外電源故障

FAQ:如何為您的工業應用選擇正確的遠程I/O ?

本文將逐步分析遠程I/O的優勢、物理接口、協議和I/O功能，以選擇適合您的工業需求的正確遠程I/O。

Advantech IoT Academy

ADAM-6000/6200系列:智能以太網遠程I/O，實現IT/OT融合

在本課程中，您將了解ADAM-6000/6200系列的優點及其應用。

Take course

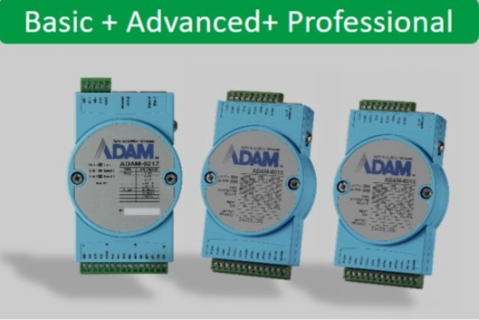

ADAM遠程I/O模塊配置技術培訓

本課程將介紹使用ADAM-4000/4100/6000/6200/6300系列模塊作為數據采集設備的知識和必要技能。

Take course

28 總計

下載 Excel 檔

Part Number	Description	Analog Input				Analog Output			Counter/Encoder Input	Digital Input		Digital Output	Environment	Isolated Digital Input	Isolated Digital Output	Relay Output	RTD Input	Thermocouple Input
		Channels	Input Range	Resolution(Bits)	Sampling Rates(S/s)	Channels	Output Ranges	Resolution	Channels	Channels	Input Voltage	Channels	Operating Temperature	Channels	Channels	Channels	Channels	Channels

Part Number	Description	Analog Input				Analog Output			Counter/Encoder Input	Digital Input		Digital Output	Environment	Isolated Digital Input	Isolated Digital Output	Relay Output	RTD Input	Thermocouple Input
		Channels	Input Range	Resolution(Bits)	Sampling Rates(S/s)	Channels	Output Ranges	Resolution	Channels	Channels	Input Voltage	Channels	Operating Temperature	Channels	Channels	Channels	Channels	Channels
ADAM-6015-DE	7RTD IoT Modbus Ethernet Remote I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	N/A	N/A	N/A	7	N/A
ADAM-6017-D	8AI/2DO IoT Modbus/SNMP/MQTT Ethernet Remote I/O	8	±0.15 V ±0.5 V, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA, 0~0.15V, 0~0.5 V, 0~1 V, 0~5 V, 0~10 V	16-bit	100 S/s (sum)	N/A	N/A	N/A	N/A	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	N/A	2	N/A	N/A	N/A
ADAM-6018+-D	8Thermocouple IoT Modbus/SNMP/MQTT Ethernet Remote I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	N/A	N/A	N/A	N/A	8
ADAM-6022-A1E	6AI/2AO/2DI/2DO Ethernet PID Module	6	±10 V, 0~20 mA, 4~20 mA	16-bit	10 S/s (sum)	2	0~10 V, 0~20 mA, 4~20 mA	12-bit	N/A	N/A	N/A	N/A	-10~50 °C (14~122 °F)	2	2	N/A	N/A	N/A
ADAM-6024-D	6AI/2AO/2DI/2DO IoT Modbus/SNMP/MQTT Ethernet Remote I/O	6	±10 V, 0~20 mA, 4~20 mA	16-bit	10 S/s (sum)	2	0~10 V, 0~20 mA, 4~20 mA	12-bit	N/A	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	2	2	N/A	N/A	N/A
ADAM-6050-D1	18-Ch Isolated DI/O Module	N/A	N/A	N/A	N/A	N/A	N/A	N/A	12	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	12	6	N/A	N/A	N/A
ADAM-6051-D	12DI/2Counter/2DO IoT Modbus/SNMP/MQTT Ethernet Remote I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	14	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	12	2	N/A	N/A	N/A
ADAM-6052-D	8DI/8DO(source type) IoT Modbus/SNMP/MQTT Ethernet Remote I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	8	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	8	8	N/A	N/A	N/A
ADAM-6060-D	6Relay/6DI IoT Modbus/SNMP/MQTT Ethernet Remote I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	8	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	6	N/A	6	N/A	N/A
ADAM-6060-D1	6 Relay Output/6 DI Module	N/A	N/A	N/A	N/A	N/A	N/A	N/A	8	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	6	N/A	6	N/A	N/A
ADAM-6066-D	6Pwer Relay/6DI IoT Modbus/SNMP/MQTT Ethernet Remote I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	8	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	6	N/A	6	N/A	N/A
ADAM-6117EI-AE	8AI EtherNet/IP Fieldbus Remote I/O	8	±0.15 V ±0.5 V, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA	16-bit	10 S/s (sum)	N/A	N/A	N/A	N/A	N/A	N/A	N/A	-10~70 °C (14~158 °F)	N/A	N/A	N/A	N/A	N/A
ADAM-6117PN-AE	8AI PROFINET Fieldbus Remote I/O	8	±0.15 V ±0.5 V, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA	16-bit	10 S/s (sum)	N/A	N/A	N/A	N/A	N/A	N/A	N/A	-10~70 °C (14~158 °F)	N/A	N/A	N/A	N/A	N/A
ADAM-6150EI-AE	8DI/7DO EtherNet/IP Fieldbus Remote I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	-10~70 °C (14~158 °F)	8	7	N/A	N/A	N/A
ADAM-6150PN-AE	8DI/7DO PROFINET Fieldbus Remote I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	-10~70 °C (14~158 °F)	8	7	N/A	N/A	N/A
ADAM-6151EI-AE	16DI EtherNet/IP Fieldbus Remote I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	-10~70 °C (14~158 °F)	16	N/A	N/A	N/A	N/A
ADAM-6156EI-AE	16DO EtherNet/IP Fieldbus Remote I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	-10~70 °C (14~158 °F)	N/A	16	N/A	N/A	N/A
ADAM-6160EI-AE	6Relay EtherNet/IP Fieldbus Remote I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	-10~70 °C (14~158 °F)	N/A	N/A	6	N/A	N/A
ADAM-6217-B	8AI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O	8	±0.15V, ±0.5V , ±1V, ±5V, ±10V, ±20 mA, 0~20 mA, 4~20 mA	16-bit	10 S/s (sum)	N/A	N/A	N/A	N/A	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	N/A	N/A	N/A	N/A	N/A
ADAM-6224-B	4AO/4DI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O	N/A	N/A	N/A	N/A	4	0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA	12-bit	N/A	4	Dry Contact Logic level 1: close to GND Logic level 0: open	N/A	-40~70 °C (-40~158 °F)	N/A	N/A	N/A	N/A	N/A
ADAM-6250-B	8DO/7DI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	8	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	8	7	N/A	N/A	N/A
ADAM-6251-B	16DI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	16	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	16	N/A	N/A	N/A	N/A
ADAM-6256-B	16DO IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	N/A	16	N/A	N/A	N/A
ADAM-6260-B	6Relay IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	N/A	N/A	6	N/A	N/A
ADAM-6266-B	4Relay/4DI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	4	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	4	N/A	4	N/A	N/A
WISE-4010LAN-B	4-ch CI 4-ch DO IoT Ethernet I/O Module	4	0~20 mA, 4~20 mA	12-bit	10/100 S/s (per channel)	N/A	N/A	N/A	N/A	N/A	N/A	4 (TTL)	-40~70 °C (-40~158 °F)	N/A	N/A	N/A	N/A	N/A
WISE-4050LAN-B	4-ch DI and 4-ch DO IoT Ethernet I/O Mod	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	4	4	N/A	N/A	N/A
WISE-4060LAN-B	4-ch DI and 4-ch Relay IoT Ethernet I/O	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	-40~70 °C (-40~158 °F)	4	N/A	4	N/A	N/A

產品型錄

EtherNet/IP Modules: ADAM-6100EI

研華ADAM-6100系列為符合EtherNet/IP協議的新型工業以太網IO模塊，該系列支持菊花鏈連接，使得在過程控制和其他工業自動化應用程序中更快地傳輸數據成為可能。菊花鏈還提供了更具可擴展性的系統，有助于提高可擴展性以及抗干擾能力。隔離設計還可以防止模塊出現故障,同時有助于抵御現場干擾。

觀看產品
PROFINET Modules: ADAM-6100PN

研華 ADAM-6100PN系列是一種新型實時以太網PROFINET I/O模塊。該系列符合PROFINET協議，具有菊花鏈連接能力，使得過程控制和其他工業自動化應用中更快傳輸數據成為可能。菊花鏈提供更具擴展性系統，減少布線有助于避免工廠設置中常見的干擾。隔離設計還可防止出現故障并有助于抵御現場干擾

觀看產品
Ethernet I/O Modules: ADAM-6000

Advantech's Ethernet I/O Modules, ADAM-6000 series, accomplishes this integration easily through the latest internet technology, so that it can remotely monitor the device status more flexibly. ADAM-6000 modules are empowered by Peer-to-Peer (P2P) and Graphic Condition Logic (GCL), and can perform as standalone products for measurement, control and automation wiith Advantech's P2P and GCL technology. With the easy-to-use and intuitive graphic utility, system configurations can be done in an ext

觀看產品
Ethernet I/O Modules with Daisy Chain

研華ADAM-6200系列采用菊花鏈設計和HTML5編程語言，是由模擬量I/O模塊、數字量I/O模塊和中繼器模塊等組成的智能雙網口以太網I/O模塊。ADAM-6200采用新穎的硬件設計和強大的軟件功能，可以提供以太網控制系統中一種很好的集成I/O解決方案。

觀看產品
IoT Ethernet I/O Modules: WISE-4000/LAN

The WISE-4000/LAN series is a newly designed IoT Ethernet I/O module which supports new RESTful web API for IoT applications. A HTML5 web configure interface enables users to configure WISE modules without the limitation of a platform or operation system. The built-in data logger function logs data with time information, then be retrieved in a bundle. Wide operating temperatures enable the WISE series to be implemented in more IoT data acquisition applications. As well as the new functions, the

觀看產品
