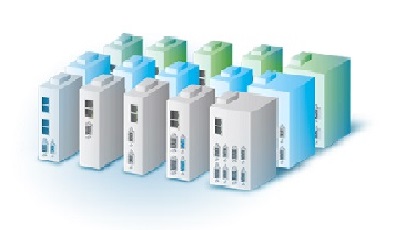

研華的串行設備服務器易于安裝，支持有線和無線網絡，并且提供多種操作方式來滿足工業自動化需求。EKI-1000系列串口設備服務器可讓RS-232/422/485 串口設備通過雙網口連接至工業以太網網絡。這些串口設備服務器通過以太網通訊協議為遠程監控串行設備提供各種冗余配置和多路存取配置。此外，他們通過豐富的運作模式完成各項需求，如虛擬串口（VCOM），TCP&UDP Server/Client等。
Protocol & Interface Conversion Solution
Advantech offers numerous wired and wireless products to convert different legacy protocols and interfaces to modern networking systems to avoid a complete overhaul of existing equipment & devices, saving cost and avoiding software programming errors.
Advantech serial device servers and Modbus/Fieldbus gateways are serial-to-Ethernet solutions that allow users to connect their isolated serial devices to the Internet for centralized machine communication management.Advantech high compatibility device servers and Modbus/Fieldbus gateways can seamlessly convert protocols for boundless machine-to-machine/ machine-to-cloud data transmission and network connectivity. The obstacles of versatile protocol communication no longer exist!
Feature Highlights
Converting Between Serial and Ethernet Connectivity
Advantech device servers convert RS-232/422/485 connections to Ethernet connection, allowing for seamless communication between traditional serial-based devices such as PLC, meters, sensors, and barcode readers to an IP-based Ethernet device.
High Compatibility with Various Serial Transmission Speed
Connect to nearly any 3rd-party serial devices without baud rate limitation, fulfilling a true machine-to-machine communication and machine-to-cloud connectivity.
Embedded Analysis Tool for Device Deployment Efficiency Enhancement
- The device servers can auto-detect and categorize the connected devices based on their baud rate settings, making sure a seamless communication at ease.
Mounting
Advantech's serial device servers, Modbus gateways and Fieldbus gateways provide several mounting methods to fit the varying needs of different projects in the field.
Advantech IoT Academy
Serial Communication Concept
Understand various common serial communication interfaces and principles, including RS-232/422/485, and CAN bus.
EKI-1220 series for Modbus to Ethernet protocol conversion
In this course, you will be learning basic knowledge of EKI-1200 series Modbus gateway product features, advantages and also the field of application
EKI-1500 series for serial-to-Ethernet protocol conversion
We will introduce the basic knowledge and features of Device Server and share some practical application scenario. We will introduce the basic setting function of Device Server.
Wi-Fi Access Point & Client: EKI-6000 & EKI-1361 Series
In this course, you will go through Advantech product roadmap of EKI-6300/EKI-1360 series.
快速篩選
| Part Number | Description | Certification | Environment | Ethernet Communication | General | Mechanism | PoE Information | Power | Protocol Support | Serial Communication | Software | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Safety | Temperature (Operating Range) | Ethernet Standard | Fiber Port Number | Fiber Port Optical Mode | Fiber Transmission Distance | Fiber Transmission Speed | RJ-45 Port Number | RJ-45 Transmission Speed | Mounting | Power | Serial Port Count | Serial Type | Temperature | Enclosure (Metal) | IP Rating | Weight | PoE Port Number | Power Consumption | Power Input (AC) | Power Input (DC) | Modbus ASCII | BACnet | EtherCAT | Ethernet | EtherNet/IP | Modbus RTU | Modbus TCP | OPC UA | PROFINET | RS-232 | RS-422 | RS-485 | Serial Port Connector Type | Serial Port Number | Serial Standard | Baud Rate | ||
| Part Number | Description | Certification | Environment | Ethernet Communication | General | Mechanism | PoE Information | Power | Protocol Support | Serial Communication | Software | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Safety | Temperature (Operating Range) | Ethernet Standard | Fiber Port Number | Fiber Port Optical Mode | Fiber Transmission Distance | Fiber Transmission Speed | RJ-45 Port Number | RJ-45 Transmission Speed | Mounting | Power | Serial Port Count | Serial Type | Temperature | Enclosure (Metal) | IP Rating | Weight | PoE Port Number | Power Consumption | Power Input (AC) | Power Input (DC) | Modbus ASCII | BACnet | EtherCAT | Ethernet | EtherNet/IP | Modbus RTU | Modbus TCP | OPC UA | PROFINET | RS-232 | RS-422 | RS-485 | Serial Port Connector Type | Serial Port Number | Serial Standard | Baud Rate | ||
| ADAM-4570-CE | 2-port RS-232/422/485 Serial Device Server | N/A | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3u | N/A | N/A | N/A | N/A | 1 | 10/100 Mbps | DIN, Panel | 10-30VDC | 2 | RS-232/422/485 | -10 to 60C | N/A | IP30 | 125 g | N/A | 2.5W | N/A | 10 ~ 30 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | RJ48 | 2 | N/A | N/A |
| ADAM-4570L-DE | 2-port RS-232 Serial Device Server | N/A | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3u | N/A | N/A | N/A | N/A | 1 | 10/100 Mbps | DIN, Panel | 10-30VDC | 2 | RS-232 | -10 to 60C | N/A | IP30 | 125 g | N/A | 2.5W | N/A | 10 ~ 30 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | N/A | N/A | RJ48 | 2 | N/A | N/A |
| ADAM-4571-CE | 1-port RS-232/422/485 Serial Device Server | N/A | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3u | N/A | N/A | N/A | N/A | 1 | 10/100 Mbps | DIN, Panel | 10-30VDC | 1 | RS-232/422/485 | -10 to 60C | N/A | IP30 | 125 g | N/A | 2.5W | N/A | 10 ~ 30 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | RJ48 | 1 | N/A | N/A |
| ADAM-4571L-DE | 1-port RS-232 Serial Device Server | N/A | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3u | N/A | N/A | N/A | N/A | 1 | 10/100 Mbps | DIN, Panel | 10-30VDC | 1 | RS-232 | -10 to 60C | N/A | IP30 | 125 g | N/A | 2.5W | N/A | 10 ~ 30 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | N/A | N/A | RJ48 | 1 | N/A | N/A |
| ADAM-4572-CE | 1-port Modbus Gateway | N/A | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3u | - | - | - | - | 1 | 10/100 Mbps | DIN, Panel | 10-30VDC | 1 | RS-232/422/485 | 0 to 60C | N/A | IP30 | 125 g | - | 2.5W | - | 10 ~ 30 VDC | Yes | - | - | Yes | - | Yes | Yes | - | - | Yes | Yes | Yes | Terminal block | 1 | N/A | 50 ~ 921.6 Kbps |
| BB-ABDN-SE-IN5410 | Serial Device Server, WiFi Dual Band, RS-232/422/485, Industrial | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Panel | 5-36VDC | 1 | RS-232/422/485 | -40 to 85C | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| BB-ABDN-SE-IN5420 | Serial Device Server, WiFi Dual Band, 2 x RS-232/422/485, Industrial | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Panel | 5-36VDC | 2 | RS-232/422/485 | -40 to 85C | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| BB-ESP901 | Serial Device Server, 1 x DB9 M RS-232/422/485, Panel Mount | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Panel | 12VDC | 1 | RS-232/422/485 | -10 to 80C | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| BB-ESP902 | Serial Device Server, 2 x DB9 M RS-232/422/485, Panel Mount | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Panel | 12VDC | 2 | RS-232/422/485 | -10 to 80C | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| BB-ESP904 | Serial Device Server, 4 x DB9 M RS-232/422/485, Panel Mount | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Panel | 12VDC | 4 | RS-232/422/485 | -10 to 80C | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| BB-ESP906CL | Serial Device Server, 4 x RJ45 RS-232/422/485, 2 x RJ45 Current Loop | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Panel | 36VDC | 6 | RS-232/422/485, CL | 0 to 40C | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| BB-ESR901 | Serial Device Server, 1 x DB9 M / RJ45 RS-232/422/485, DIN Rail | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | DIN, Panel | 9 to 48VDC, 8 to 24VAC | 1 | RS-232/422/485 | -10 to 80C | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| BB-ESR902 | Serial Device Server, 2 x DB9 M RS-232/422/485, DIN Rail | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | DIN, Panel | 9 to 48VDC, 8 to 24VAC | 2 | RS-232/422/485 | -10 to 80C | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| BB-ESR904 | Serial Device Server, 4 x DB9 M RS-232/422/485, DIN Rail | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | DIN, Panel | 9 to 48VDC, 8 to 24VAC | 4 | RS-232/422/485 | -10 to 80C | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| BB-MESR901 | Modbus Gateway, RS-232/422/485 TB, Ind. DIN | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | DIN | 10-48VDC | 1 | RS-232/422/485 | -40 to 80C | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 1 | RS-232 / RS-422 / RS-485 | 50 ~ 230.4 Kbps |
| BB-MESR902T | Modbus Gateway, 2 x RS-232/422/485 TB, Ind. DIN | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | DIN | 10-48VDC | 2 | RS-232/422/485 | -40 to 80C | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| BB-VESP211 | Serial Device Server, 1 x DB9 M RS-232/422/485, AC Adapter | NO | 0 ~ 40°C (32 ~ 104°F) | N/A | N/A | N/A | N/A | N/A | 1 | 10/100 Mbps | Panel | 12VDC | 1 | RS-232/422/485 | 0 to 40C | N/A | IP30 | N/A | N/A | 6W | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 | 1 | N/A | N/A |
| BB-VESP211-232 | Serial Device Server, 1 x DB9 M RS-232, AC Adapter | NO | 0 ~ 40°C (32 ~ 104°F) | N/A | N/A | N/A | N/A | N/A | 1 | 10/100 Mbps | Panel | 12VDC | 1 | RS-232 | 0 to 40C | N/A | IP30 | N/A | N/A | 6W | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | N/A | N/A | DB9 | 1 | N/A | N/A |
| BB-VESP211-485 | Serial Device Server, 1 x TB RS-422/485, AC Adapter | NO | -40 ~ 80°C (-40 ~ 176°F) | N/A | N/A | N/A | N/A | N/A | 1 | 10/100 Mbps | Panel | 12VDC | 1 | RS-422/485 | 0 to 40C | N/A | IP30 | N/A | N/A | 6W | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Screw Terminal | 1 | N/A | N/A |
| BB-VESR901 | Serial Device Server, 1 x RS-232/422/485 DB9 M / TB, Ind. DIN | NO | -40 ~ 80°C (-40 ~ 176°F) | N/A | N/A | N/A | N/A | N/A | 1 | N/A | DIN | 10-48VDC | 1 | RS-232/422/485 | -40 to 80C | N/A | IP30 | N/A | N/A | 4W | N/A | 10 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 & TB | 1 | N/A | N/A |
| BB-VESR902D | Serial Device Server, 2 x RS-232/422/485 DB9 M, Ind. DIN | NO | -40 ~ 80°C (-40 ~ 176°F) | N/A | N/A | N/A | N/A | N/A | 1 | N/A | DIN | 10-48VDC | 2 | RS-232/422/485 | -40 to 80C | N/A | IP30 | N/A | N/A | 4W | N/A | 10 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 | 2 | N/A | N/A |
| BB-VESR902T | Serial Device Server, 2 x RS-232/422/485 TB, Ind. DIN | NO | -40 ~ 80°C (-40 ~ 176°F) | N/A | N/A | N/A | N/A | N/A | 1 | N/A | DIN | 10-48VDC | 2 | RS-232/422/485 | -40 to 80C | N/A | IP30 | N/A | N/A | 4W | N/A | 10 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | Terminal block | 2 | N/A | N/A |
| EKI-1221-CE | Industrial 1-port Modbus Gateway | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | N/A | 0.472 kg | - | 3.2W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | Yes | Yes | Yes | DB9 male | 1 | N/A | 50 ~ 921.6 Kbps |
| EKI-1221CI-DE | Industrial 1-port Modbus Gateway - Isolation, Wide Temperature | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 0.472 kg | - | 3.2W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | N/A | Yes | Yes | DB9 male | 1 | N/A | 50 ~ 921.6 Kbps |
| EKI-1221I-CE | Industrial 1-port Modbus Gateway - Wide Temperature | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 0.48 kg | - | 3.2W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | Yes | Yes | Yes | DB9 male | 1 | N/A | 50 ~ 921.6 Kbps |
| EKI-1222-CE | Industrial 2-port Modbus Gateway | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 0.48 kg | - | 3.2W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | Yes | Yes | Yes | DB9 male | 2 | N/A | 50 ~ 921.6 Kbps |
| EKI-1222CI-DE | Industrial 2-port Modbus Gateway - Isolation, Wide Temperature | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 0.48 kg | - | 3.2W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | N/A | Yes | Yes | DB9 male | 2 | N/A | 50 ~ 921.6 Kbps |
| EKI-1222I-CE | Industrial 2-port Modbus Gateway - Wide Temperature | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 0.48 kg | - | 3.2W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | Yes | Yes | Yes | DB9 male | 2 | N/A | 50 ~ 921.6 Kbps |
| EKI-1224-CE | Industrial 4-port Modbus Gateway | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 0.555 kg | - | 4.1W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | Yes | Yes | Yes | DB9 male | 4 | N/A | 50 ~ 921.6 Kbps |
| EKI-1224CI-CE | Industrial 4-port RS-422/485 Modbus Gateway - Isolation, Wide Temp. | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 0.555 kg | - | 4.1W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | N/A | Yes | Yes | DB9 male | 4 | N/A | 50 ~ 921.6 Kbps |
| EKI-1224I-CE | Industrial 4-port Modbus Gateway - Wide Temperature | IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | - | - | - | - | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 0.555 kg | - | 4.1W | - | 12 ~ 48 VDC, redundant dual inputs | Yes | - | - | Yes | - | Yes | Yes | - | - | Yes | Yes | Yes | DB9 male | 4 | N/A | 50 ~ 921.6 Kbps |
| EKI-1361-CE | 1-port RS-232/422/485 to 802.11 a/b/g/n WLAN Serial Device Server | N/A | -40 ~ 70°C (-40 ~ 158°F) | N/A | N/A | N/A | N/A | N/A | 1 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal shell with solid mounting kits | IP30 | 0.50 kg (1.1 lbs) | N/A | Max. 2W | N/A | 12 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 male | 1 | N/A | N/A |
| EKI-1511L-A | 1-port entry level device server RS-232 | UL 60950-1 | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3u | N/A | N/A | N/A | N/A | 1 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 125 g | N/A | 1W | N/A | 9 ~ 36 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | N/A | N/A | DB9 male | 1 | N/A | N/A |
| EKI-1521-CE | 1-port RS-232/422/485 Serial Device Server | UL 60950-1 | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3ab , 802.3u | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 432 g | N/A | 3.2W | N/A | 12 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 male | 1 | N/A | N/A |
| EKI-1521I-CE | 1-port RS-232/422/485 Serial Device Server - Wide Temperature | UL 60950-1 | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 432 g | N/A | 3.2W | N/A | 12 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 male | 1 | N/A | N/A |
| EKI-1521I-SC-A | 1-port Device Server with SM/SC Fiber a | UL 60950-1 | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 432 g | N/A | 4W | N/A | 12 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | 1 x SC single mode Fiber | 1 | N/A | N/A |
| EKI-1522-CE | 2-port RS-232/422/485 Serial Device Server | UL 60950-1 | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3ab , 802.3u | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 432 g | N/A | 3.2W | N/A | 12 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 male | 2 | N/A | N/A |
| EKI-1522CI-DE | 2-port RS-422/485 Serial Device Server - Isolation, Wide Temperature | UL 60950-1 | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 0.48 kg | N/A | 3.2W | N/A | 12 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | DB9 male | 2 | N/A | N/A |
| EKI-1522I-CE | 2-port RS-232/422/485 Serial Device Server - Wide Temperature | UL 60950-1 | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 432 g | N/A | 3.2W | N/A | 12 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 male | 2 | N/A | N/A |
| EKI-1524-CE | 4-port RS-232/422/485 Serial Device Server | UL 60950-1 | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3 , 802.3ab , 802.3u | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 0.537 kg | N/A | 4.1W | N/A | 12 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 male | 4 | N/A | N/A |
| EKI-1524CI-CE | 4-port RS-422/485 Serial Device Server - Isolation, Wide Temperature | UL 60950-1 | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 0.537 kg | N/A | 4.1W | N/A | 12 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | DB9 male | 4 | N/A | N/A |
| EKI-1524I-CE | 4-port RS-232/422/485 Serial Device Server - Wide Temperature | UL 60950-1, UL 62368 | -40 ~ 75°C (-40 ~ 167°F) | IEEE 802.3 , 802.3ab , 802.3u | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | Metal with solid mounting hardware | IP30 | 0.537 kg | N/A | 4.1W | N/A | 12 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 male | 4 | N/A | N/A |
| EKI-1526-CE | 16-port RS-232/422/485 Serial Device Server - AC Input, DB9, Rackmount | UL 60950-1, UL 62368 | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3, 802.3u, 802.3ab | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | N/A | IP30 | 3.1 kg | N/A | 5.6W | 100 ~ 240 VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 | 16 | N/A | N/A |
| EKI-1526I-CE | 16-port RS-232/422/485 Serial Device Server - Wide Temp., AC Input, DB9, Rackmount | UL 60950-1, UL 62368 | -40 ~ 70°C (-40 ~ 158°F) | IEEE 802.3, 802.3u, 802.3ab | N/A | N/A | N/A | N/A | 2 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | IP30 | 3.1 kg | N/A | 5.6W | 100 ~ 240 VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 | 16 | N/A | N/A |
| EKI-1526N-CE | 16-port RS-232/422/485 Serial Device Server - AC Input, Serial RJ45, Rackmount | UL 60950-1, UL 62368 | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3, 802.3u, 802.3ab | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | N/A | IP30 | 3.1 kg | N/A | 5.6W | 100 ~ 240 VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | RJ45 | 16 | N/A | N/A |
| EKI-1526TI-VDC-CE | 16-port RS-232/422/485 Serial Device Server - Wide Temp., DC Input, DB9, Rackmount | UL 60950-1, UL 62368 | -40 ~ 70°C (-40 ~ 158°F) | IEEE 802.3, 802.3u, 802.3ab | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | N/A | IP30 | 3.1 kg | N/A | 5.6W | N/A | 12 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 | 16 | N/A | N/A |
| EKI-1526TI-VHDC-CE | 16-port RS-232/422/485 Device Server W/ | UL 60950-1, UL 62368 | -40 ~ 70°C (-40 ~ 158°F) | IEEE 802.3, 802.3u, 802.3ab | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | N/A | IP30 | 3.1 kg | N/A | 5.6W | N/A | 12 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 | 16 | N/A | N/A |
| EKI-1526T-VDC-CE | 16-port RS-232/422/485 Serial Device Server - DC Input, DB9, Rackmount | UL 60950-1, UL 62368 | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3, 802.3u, 802.3ab | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | N/A | IP30 | 3.1 kg | N/A | 5.6W | N/A | 12 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 | 16 | N/A | N/A |
| EKI-1528-CE | 8-port RS-232/422/485 Serial Device Server - AC Input, DB9, Rackmount | UL 60950-1, UL 62368 | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3, 802.3u, 802.3ab | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | N/A | IP30 | 2.9 kg | N/A | 5.6W | 100 ~ 240 VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 | 8 | N/A | N/A |
| EKI-1528CI-DR-AE | 8-port RS-422/485 Serial Device Server - Isolation, Wide Temperature | UL 60950-1 | -40 ~ 70°C (-40 ~ 158°F) | IEEE 802.3 , 802.3u | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | N/A | IP30 | 9 kg | N/A | 5.6W | N/A | 12 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | DB9 male | 8 | N/A | N/A |
| EKI-1528I-CE | 8-port RS-232/422/485 Serial Device Server - Wide Temp., AC Input, DB9, Rackmount | UL 60950-1, UL 62368 | -40 ~ 70°C (-40 ~ 158°F) | IEEE 802.3 , 802.3u | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | N/A | IP30 | 2.9 kg | N/A | 5.6W | 100 ~ 240 VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | DB9 male | 8 | N/A | N/A |
| EKI-1528I-DR-AE | 8-port RS-232/422/485 Serial Device Server - Wide Temperature | UL 60950-1 | -40 ~ 70°C (-40 ~ 158°F) | IEEE 802.3 , 802.3u | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | N/A | IP30 | 9 kg | N/A | 5.6W | N/A | 12 ~ 48 VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | DB9 male | 8 | N/A | N/A |
| EKI-1528N-CE | 8-port RS-232/422/485 Serial Device Server - AC Input, Serial RJ45, Rackmount | UL 60950-1, UL 62368 | -10 ~ 60°C (14 ~ 140°F) | IEEE 802.3, 802.3u, 802.3ab | N/A | N/A | N/A | N/A | 2 | 10/100 Mbps | N/A | N/A | N/A | N/A | N/A | N/A | IP30 | 2.9 kg | N/A | 5.6W | 100 ~ 240 VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Yes | Yes | Yes | RJ45 | 8 | N/A | N/A |
| USB-4604B-BE | 4-Port RS-232 to USB Converter | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 4 | RS-232 | 50 ~ 921.6 Kbps |
| USB-4604BM-BE | 4-Port RS-232/422/485 to USB Converter | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 4 | RS-232 / RS-422 / RS-485 | 50 ~ 921.6 Kbps |
產品型錄
-
RS-232/422/485到無線以太網串行設備服務器
![]()
串行設備服務器能讓 RS-232/RS-422/RS-485 串行設備以快速、具成本效益的方式，透過以太網絡連接至主計算機。 由于無須在主計算機另外進行編程，因此能節省軟件開發成本。 序列裝置服務器特別適合透過以太網絡以遠程方式控制及監控您的序列裝置，也適合與 RS-232/RS-422/RS-485 串行設備進行聯機。
-
Wireless Device Server
![]()
Advantech's wireless device server bring RS-232/422/485 to your WLAN or LAN, allowing devices with a serial ports to be connected and shared on WLAN.
-
Modbus 網關
![]()
Modbus 串行設備服務器是作為 Modbus 串行設備與在以太網絡上執行 Modbus/TCP 之計算機主機之間的接口。 Modbus串行設備服務器完全兼容于 Modbus/TCP，為您提供便利的解決方案，將執行 Modbus 序列通訊協議 (Modbus/ASCII 或 Modbus/RTU) 的現有裝置或控制器聯機至以太網絡。
-
USB 串口設備聯網服務器
![]()
研華的USB串口設備聯網服務器允許PC用戶通過局域網連接串口設備至串口接口系統，例如USB監控，打印機及掃描儀。為了更進一步滿足虛擬環境，USB-to-LAN串口設備服務器強化用戶導向及效率的同時削減硬件要求及額外費用；立即將已連接的設備轉換到你可通過網絡訪問的任何地方。其熱插拔及總線供電等功能的支持，我們的USB-to-LAN串口設備服務器避免了機器重啟的延遲及各種狀況，并不需要額外的電源供應。我們提供具有配套軟件的熱插拔USB設備服務器無需更多卡槽或IRQ地址設置
-
Console Servers
![]()
Advantech console server delivers a simple, cost-effective way to achieve secure access and out-of-band management.
產品相關信息
-

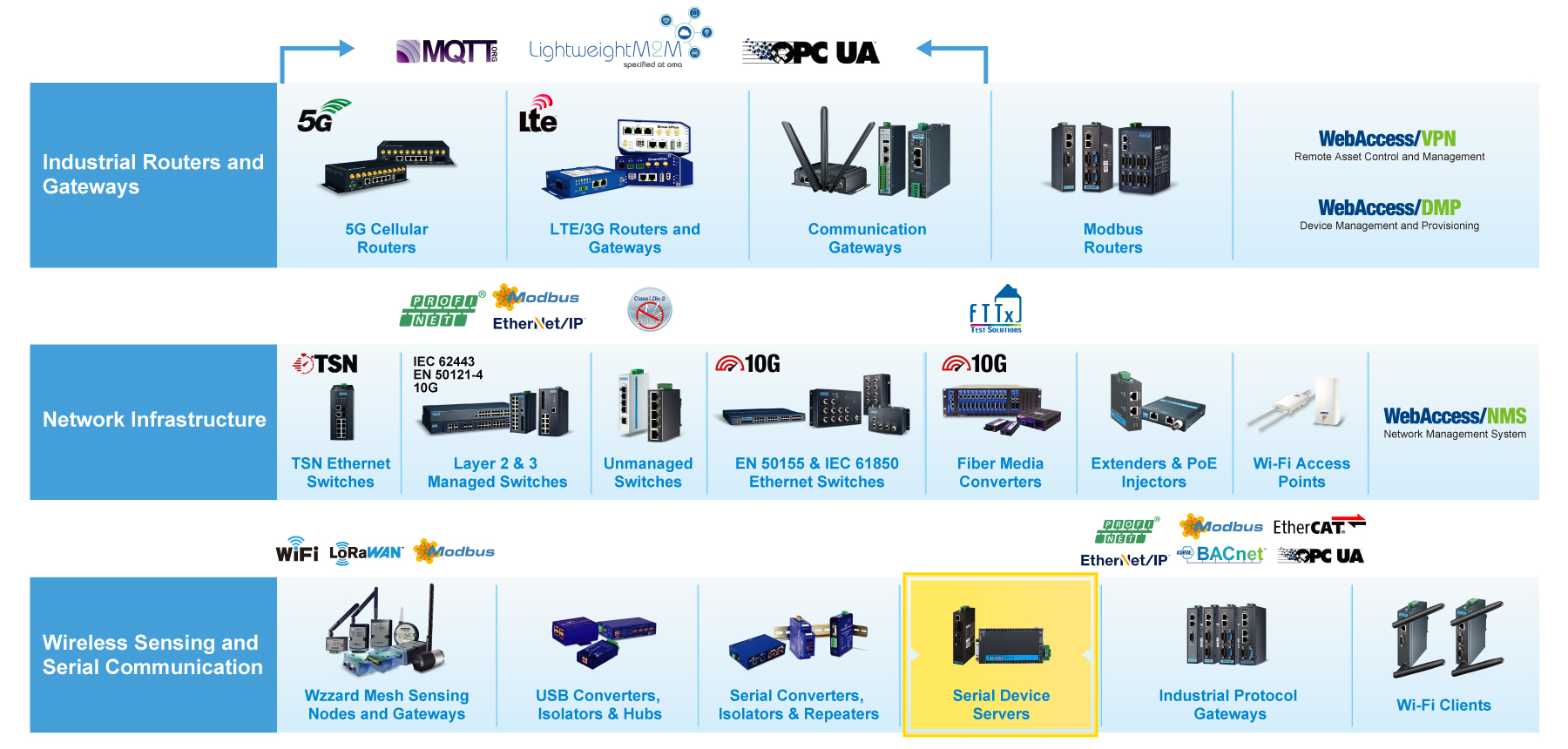

Advantech Industrial Intelligent Connectivity Solutions
Advantech integrates technologies, such as time-sensitive networking (TSN), 5G, and Wi-Fi 6, with existing Modbus, Fieldbus, and Ethernet capabilities to provide seamless connectivity via industrial switches, routers, gateways, media and serial converters.
